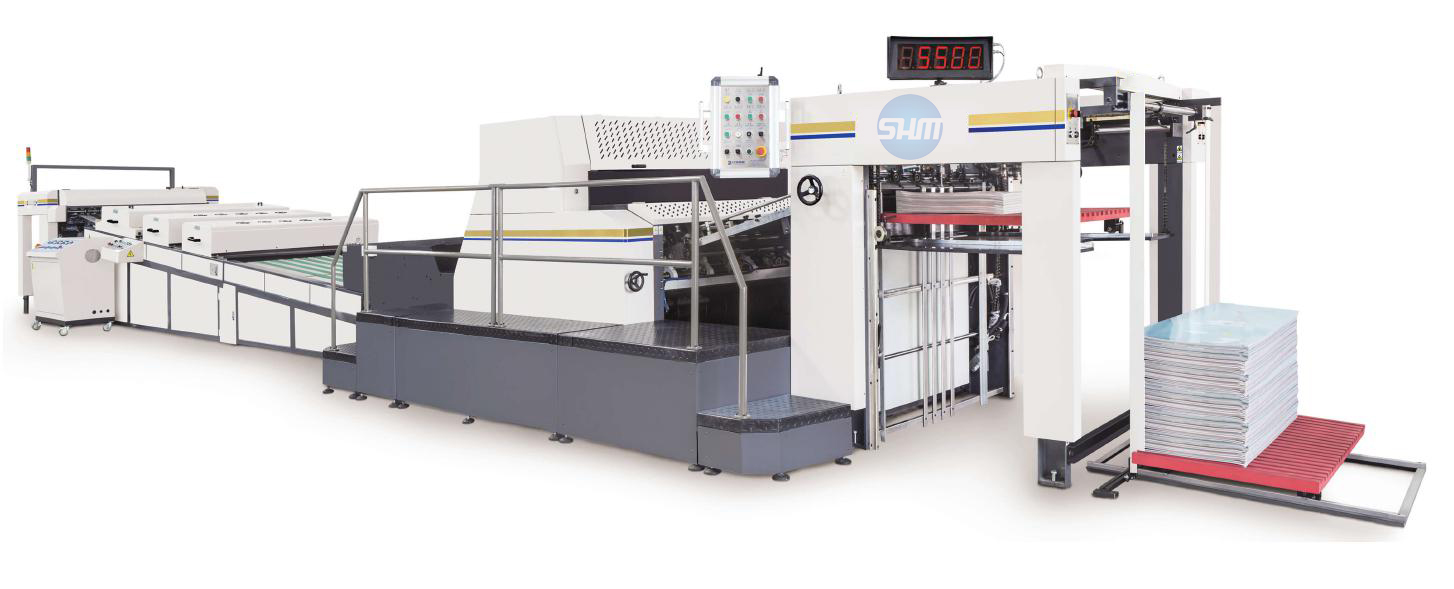

UST-1316L HIGH SPEED SPOT UV COATING MACHINE







MAIN SPECIFICATIONS:

Model
UST1316L
Sheet size
Max. 1650x1300mm
Min.580x580mm
Coating size
Max.1630x1260mm
Sheet thickness
128-600gsm
Gripper distance
5-8mm
Speed
Max.5500pcs/hour
Power
65.3KW
Weight
14170kg
Dimension
14144x3600x2055mm

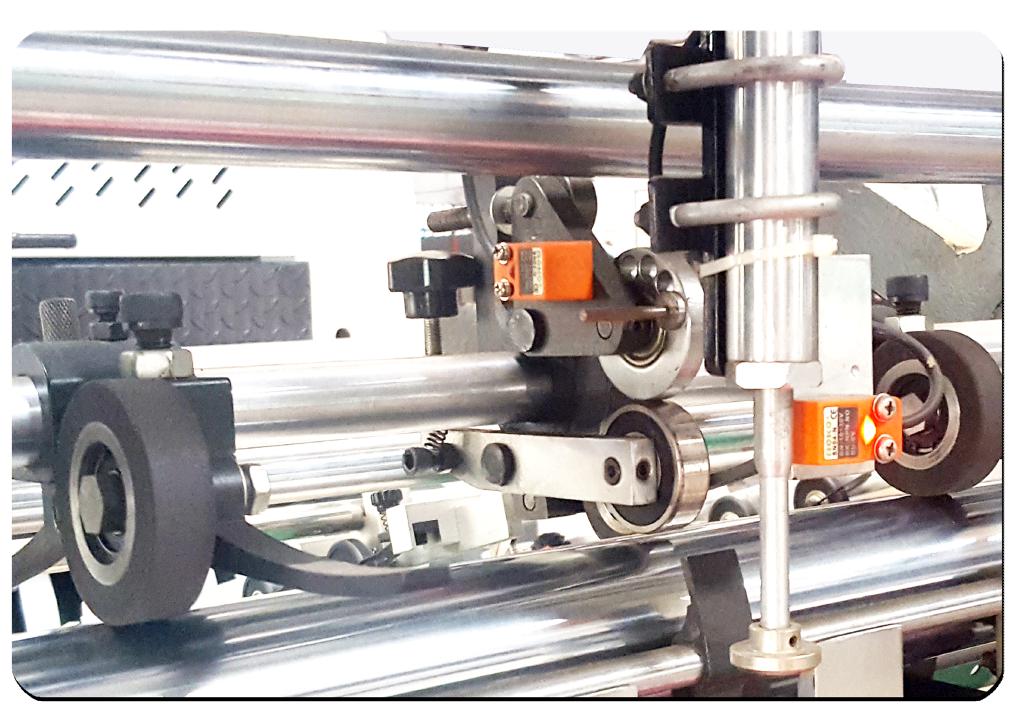

AUTOMATIC STREAM FEEDER (PRE-LOADING DEVICE AND NON-STOP FEEDER)



资源 11@4x-100.jpg





Accurate entry of sheetsinto varnishing unit.
Double sheet detector.
Missheet control.
Emergency stop.



HOST COATING SYSTEM

资源 12@4x-100.jpg


5500pcs/hour speed system.
Enclosed anilox coating chamber.
Varnish pump for continuous varnish circulation and mixing of varnish.

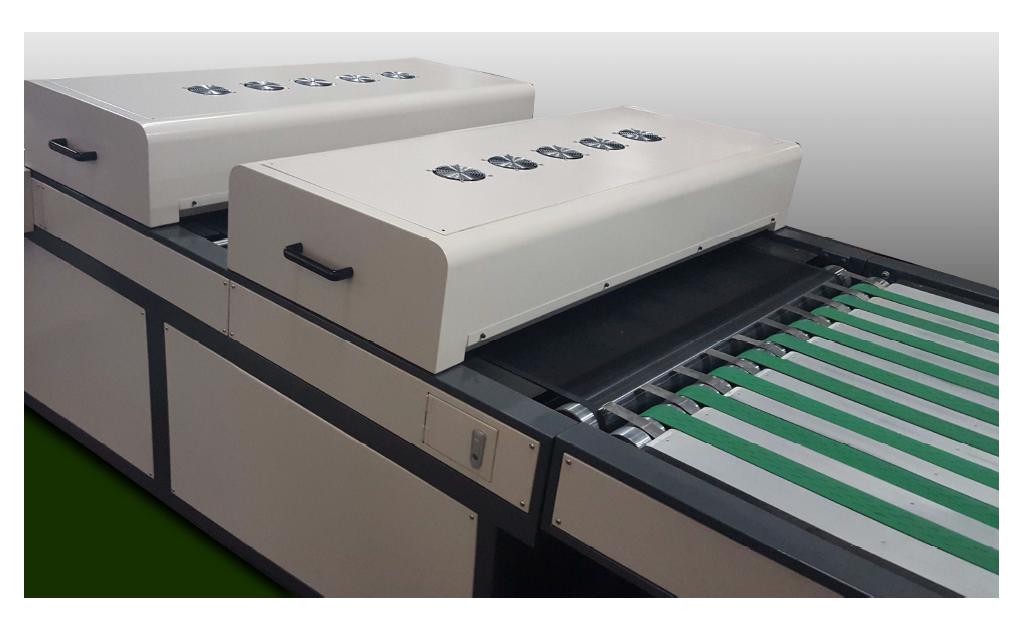

IR DRYING SYSTEM

资源 13@4x-100.jpg


Electric high-temperature system.
Uniform heating result.

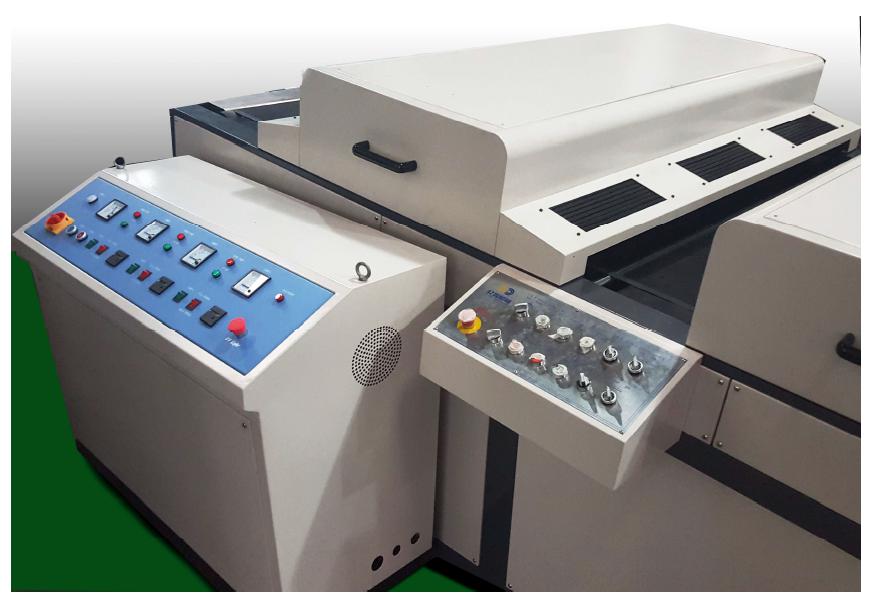

UV CURING SYSTEM

资源 14@4x-100.jpg


3x U.V lampscontrol panel.
U.V Control cabinet.
Full/Halfpower level, Stepless Power control is optional.
Safety control for over-temperature.


PAPER DELIVERY SYSTEM


资源 16@4x-100.jpg


Exhaust system with exhaust blower & ducts to extract fumes.
Sheet counter.
Lifting and limiting safety device for paper receiving table.
