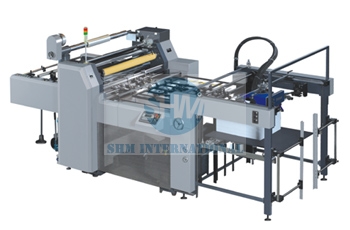

ZWJ-104 AUTO NON-GLUE FILM LAMINATING MACHINE







MAIN FEATURES:

1. Automatic feeding with overlapping unit, automatic slitting.
2. Permanent oil temperature in main machine, even temperature on the surface of heating roller
3. Big-diameter heating roller, long-lasting of temperature, fast production speed
4. High temperature resistant materials are used for main pressure roller, stable quality
5. Tension roller is used for film winding, automatic tension control for film transportation
6. Friendly design, convenient operation, complete function, high configuration for the whole machine


MAIN SPECIFICATIONS:


Sheet size

Max.820x1040mm

Min.340x410mm

Paper thickness

100-450g

Film coating temperature

60-130℃

Film coating feed

5-45m/min

Power

13.2kw

Weight

2100kg

Dimension

5200x2000x2100mm
