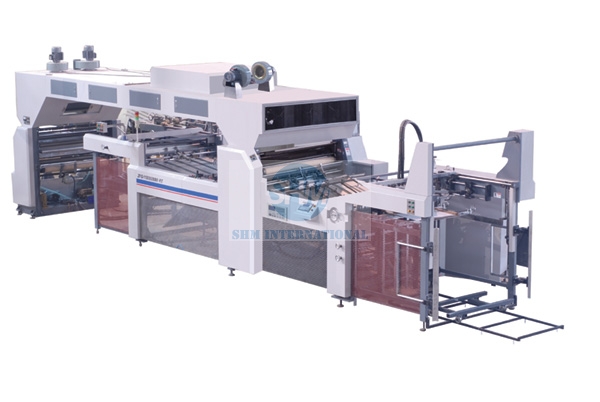

ZFQ-1100 AUTOMATIC FILM LAMINATING MACHINE (TC)







MAIN FEATURES:

1. Suitable for Glue-less film, Polypropylene film, Polyster film.
2. Adopting heating roller with oil and insure keep constant temperature.
3.The film laying device adopts magnetic powder stabilizer, and adopts automatic tension-adjusting control.
4. The machine case is with quality material, with high strength and low deformation, and so it has long service life and its press-roller and baking channel adopt automatic constant –temperature control.
5. This machine is suitable for both water cold glue and red glue.
6. It has an automatic punching device.


MAIN SPECIFICATIONS:


Sheet size

Max.1040x1040mm

Min.360x360mm

Paper thickness

100-450gsm

Film coating temperature

60-130℃

Film coating speed

5-45m/min

Laminating pressure

5-25MPa

Power

38.7kw

Weight

3600kg

Dimension

10110x2100x2500mm
