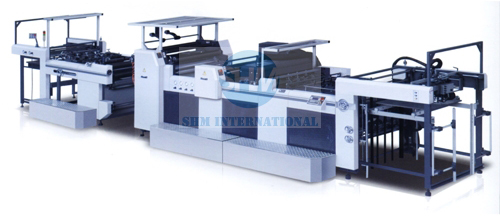

YZFM SERIES AUTOMATIC PRE-COATES FILM LAMINATING MACHINE







MAIN FEATURES:

1.Using converter to control speed, running steady.
2.Due to the machine controlled by electric appliances, so it only needs one operator to operate.
3.The main machine uses oil to keep constant temperature. So the temperature of heating roller’s surface is average.
4.Φ380mm large diameter mirror heating roller, temperature lasting not easily erosion, production speed is high.
5.Main pressure roller uses high temperature resistant material, quality is stable.
6.Film Separating and punching to be equipped.
7.Compounded heating roller adopts polishing technique, enhance the quality of the products.
8.The main pressure roller can be the roller with oil heating function(this provide automatic temperature control unit)


MAIN SPECIFICATIONS:


Model

YZFM 1040

YZFM 920

YZFM 780

Sheet size

Max.1040x1040mm

Min.325x325mm

Max.920x1040mm

Min.325x325mm

Max.780x1040mm

Min.355x355mm

Paper thickness

105-450g/m2

105-450g/m2

105-450g/m2

Feeding pile height

1050mm

950mm

950mm

Laminating width

Max.1020mm

Max.920mm

Max.780mm

Laminating speed

Max.10-40m/min

Max.10-50m/min

Max.10-50m/min

Laminating temperature

85-125

85-125

85-125

Working pressure

5-20MPa

5-20MPa

5-20MPa

Power

32kw

29.7kw

29.7kw

Weight

3000kg

2400kg

2100kg

Dimension

9500x2400x2200mm

7100x1700x2000mm

7100x1600x2000mm
