HOME > PRODUCTS > POSTPRESS SYSTEM > LAMINATING MACHINEYFM920 Pre-glue Film Laminating Machine (TC)

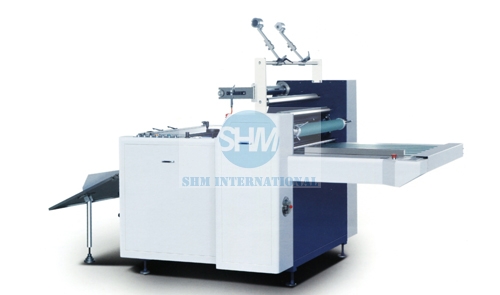

YFM920 PRE-GLUE FILM LAMINATING MACHINE






MAIN FEATURES:

1.Using converter to control speed, running steady.
2.Due to the machine controlled by electric appliances, so it only needs one operator to operate.
3.The main machine uses oil to keep constant temperature. So the temperature of heating roller’s surface is average.
4.Large diameter mirror heating roller, temperature lasting not easily erosion, production speed is high.
5.Lord pressure roller uses high temperature resistant material, quality is stable.
6.Manual oil pressure supply system, secure pressure step up and down.
7.Film slitting and punching to be equipped.


MAIN SPECIFICATIONS:


Paper width

Max.650x920mm

Working pressure

10-16MPa

Speed

Max.30m/min

Film width

Max.880mm

Power

15.7kw

Paper Thickness

105-500g/m2

Weight

1400kg

Dimension

3000x1740x1750mm
