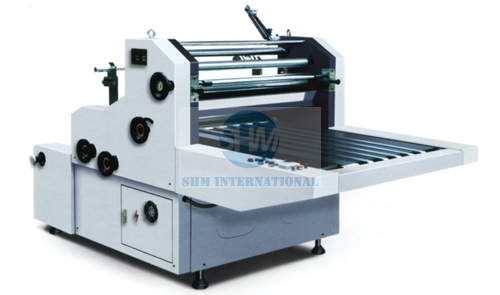

SFM SERIES WATER BASED FILM LAMINATING MACHINE
INTRODUCTION:
The machine is equipped with an imported inverter,self-cutting and a quick finishes rolling-up and pushing-out processing system stable in performance,high speed and energy-saving.
MAIN SPECIFICATIONS:
|
Model |
SFM-720B |
SFM-1000B |
SFM-1200B |
|
Effective width |
710mm |
950mm |
1150mm |
|
Speed |
0-45m/min |
0-45m/min |
0-45m/min |
|
Power |
5.5kw |
5.5kw |
5.5kw |
|
Weight |
1500kg |
1500kg |
1700kg |
|
Dimension |
2700x1200x1400mm |
2700x1500x1400mm |
2700x1700x1400mm |
