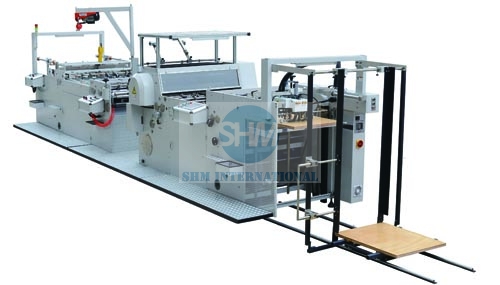

YZFM-920 AUTOMATIC LAMINATING MACHINE







INTRODUCTION:

The machine is controlled by the OMRON PLC. One person operates easily. High automatic equipment can shorten the time of procedure and enhance efficiency. The diameter of main pressing steel roller is 380mm. This steel roller is heated by oil. So temperature can reach 85-125ºC. This machine is equipped with film separating and punching devices.


MAIN FEATURES:

1. Eight suction nozzles achieve high speed and high precision. Non-stop feeder has pre-pile device optional upon customer requirement.
2. The diameter of main pressing steel roller is 380mm. This steel roller is heated by oil. So temperature can reach 85-125ºC.
3. This machine is equipped with film separating and punching devices.
4. Paper overlap adopts servo technology, so the precision is high.
5. The products passed the punching devices were separated easily. There are pressing roller and pulling roller to separate sheets.Separating unit adopts pneumatic device, it is automatic and live in a small area, operated easily.
6. The floor space is small. The machine uses vibration to make products neat.


MAIN SPECIFICATIONS:


Sheet size

Max.1040x920mm

Min.290x325mm

Paper thickness

105-450 g/m2

Laminating width

Max.920mm

Film supply

Pre-coated/Thermal film

Production speed

Max.105-157g/m², 30m/min;

157-450g/m², 50m/min

Laminating temperature

Approx. 85-125ºC

Power

26.75kw

Weight

2400kg

Dimension

8255x1800x1900mm
