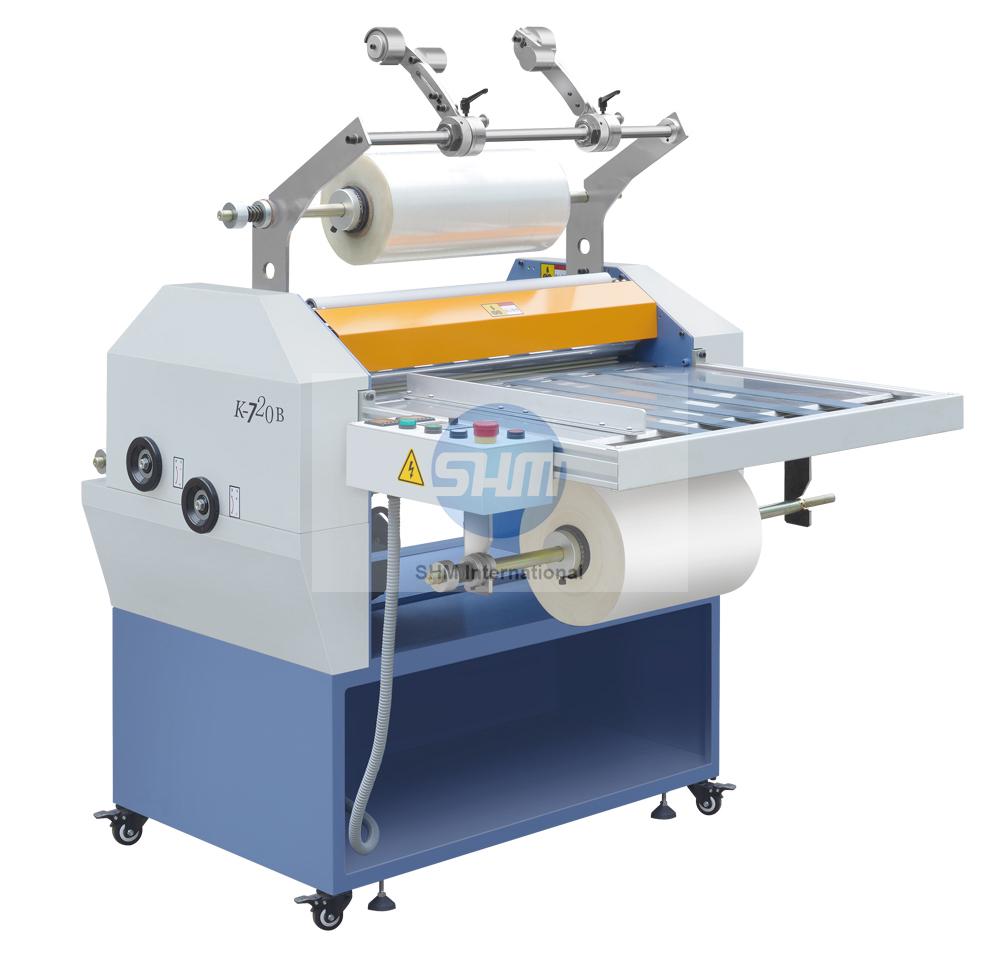

K540B/720B/900B MANUAL DOUBLE SIDE LAMINATOR







MAIN FEATURES:

It is small simple manual laminating machine with new design. Machine main feature is advanced design, elegant style, compact structure, easy operation and so on.
The machine is an ideal choice for the digital printing, graphic arts printing, short format, imaging printing, office documents print etc.  Using thermal film, signle side or double side laminating makes paper sheets perfect.


MAIN SPECIFICATSIONS:


Model

K540B

K720B

K900B

Paper size

Max.540mm

Max.720mm

Max.900mm

Laminating speed

0-15m/min

0-15m/min

0-15m/min

Paper thickness

105-500gsm

105-500gsm

105-500gsm

Power

3kw

3.2kw

3.5kw

Weight

230kg

250kg

270kg

Dimension

1270x970x1400mm

1270x1150x1400mm

1270x1300x1400mm
