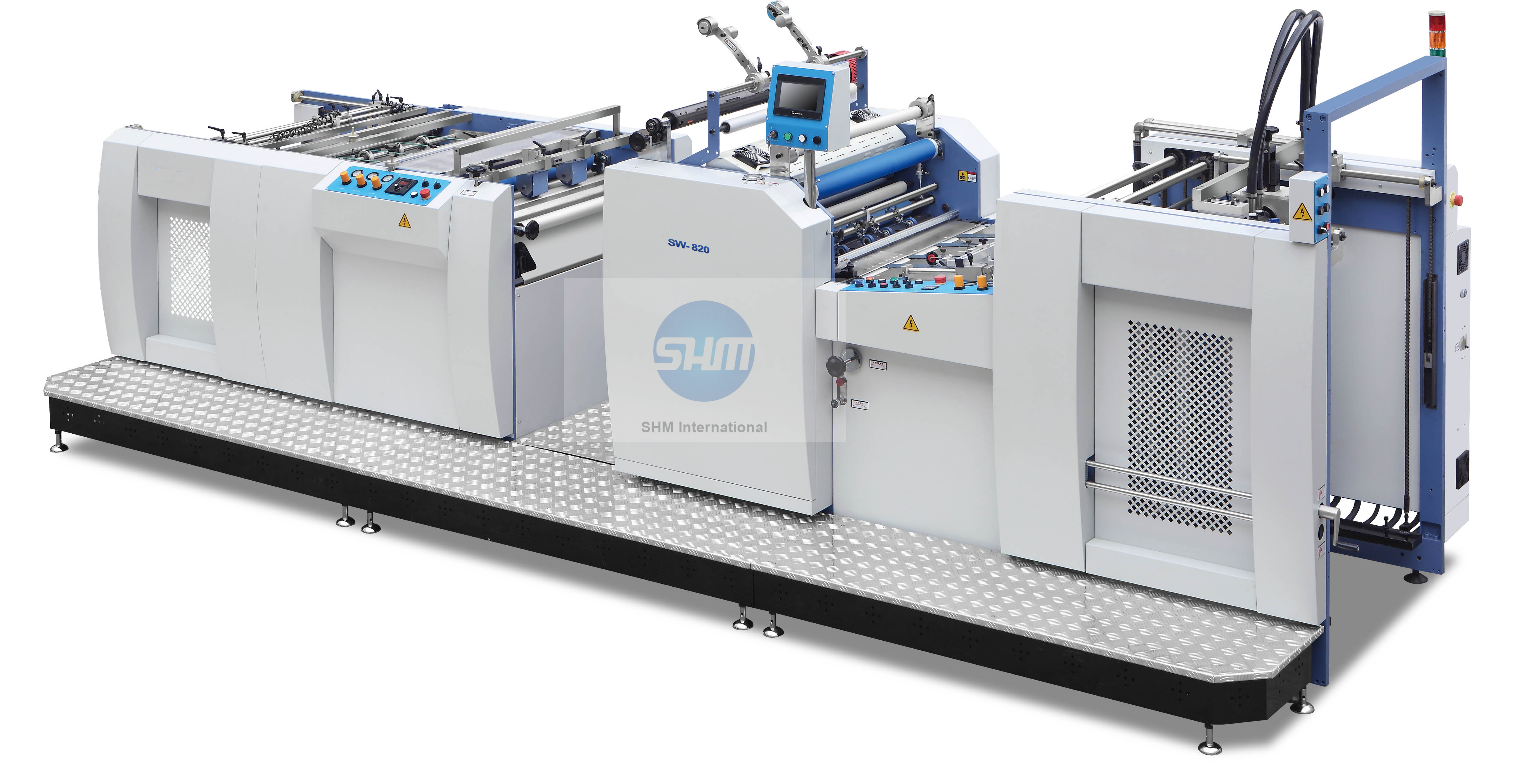

SW560/660/760 FULLY AUTOMATIC LAMINATOR














MAIN SPECIFICATIONS:

Model
SW-560
SW-660
SW-760
Paper size
Max.560x820mm
Min.210x300mm
Max.660x820mm
Min.210x300mm
Max.760x820mm
Min.210x300mm
Paper thickness
90-600g/m²
90-600g/m²
90-600g/m²
Laminating speed
0-60m/min
0-60m/min
0-60m/min
Power
20/12kw
20/12kw
20/12kw
Weight
2600kg
2800kg
3000kg
Dimension
4600x1350x1600mm
4600x1450x1700mm
4600x1550x1700mm


MAIN FEATURES:

1.Auto Feeder
Servo controlled feeder and a photooelectric sensor to ensure that paper is continuously fed into the machine.

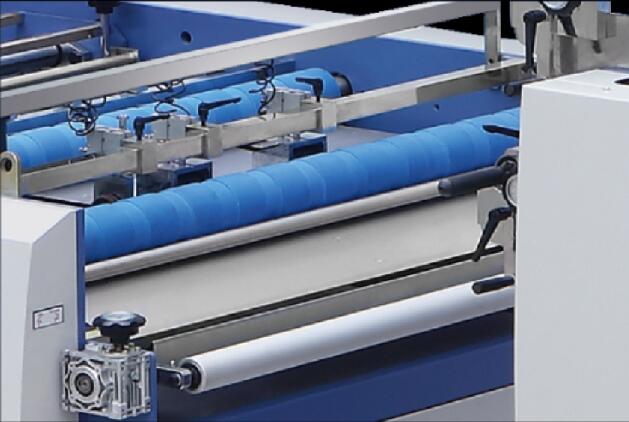

2.Suction Device
Suction device guarantees stablity and smooth of paper sending.

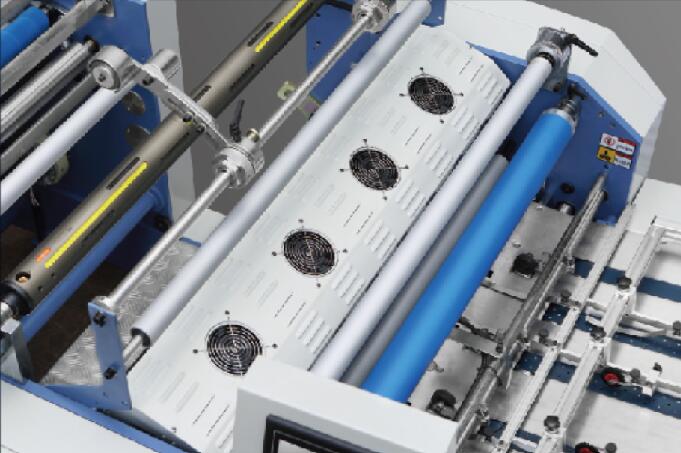

3.Electromagnetic Heater
Equipped with advanced electromagnetic heater.Fast pre-heating.Energy saving.Environmental protection.





4.Automatic Stacker
Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.




5.Anti-curvature Device
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.

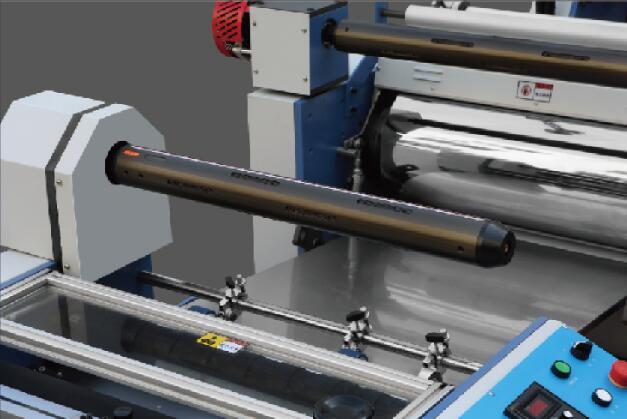

6.Hot Stamping Rewinder for Pre-printing(Optional)
It applys for rewinding waste film of paper hot stamping with seperation design. It's optional.


二次压合 选配.jpg
