HOME > PRODUCTS > POSTPRESS SYSTEM > LAMINATING MACHINESW1200G Fully Automatic Laminator














SW1200G FULLY AUTOMATIC LAMINATOR






MAIN SPECIFICATIONS:


Model

SW-1200G

Paper size

Max.1200x1450mm

Min.390x450mm

Paper thickness

105-500g/m²

Laminating speed

0-120m/min

Pre-stacker

1850mm

Power

50/25kw

Weight

6600kg

Dimension

10600x2400x1900mm



MAIN FEATURES:

1.Auto Feeder
This machine is equipped with a paper pre-stacker,Servo controlled feeder and a photooelectric sensor to ensure that paper is continuously fed into the machine.

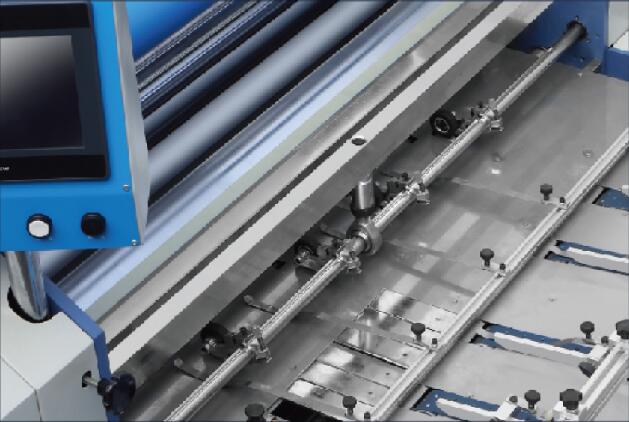

2.Side Lay Regulator
The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.




3.Electromagnetic Heater
Equipped with advanced electromagnetic heater.Fast pre-heating.Energy saving.Environmental protection.





4.High Speed Automatic Stacker
The pneumatic stacker receives the paper,keeping them in order,while rapidly counting every sheet.




5.Power Dusting Device
Heating roller with scraper effectively clean the powder and dust in the surface of paper. Improce the briteness and bond after laminating.

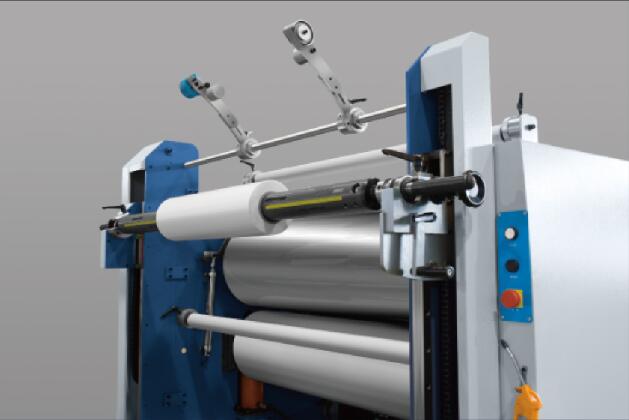

6.Auto Lifting Film Shaft
Saving time of film loading and uploading, improving efficiency.
