HOME > PRODUCTS > POSTPRESS SYSTEM > LAMINATING MACHINESC-1050+2 Fully Automatic Laminator

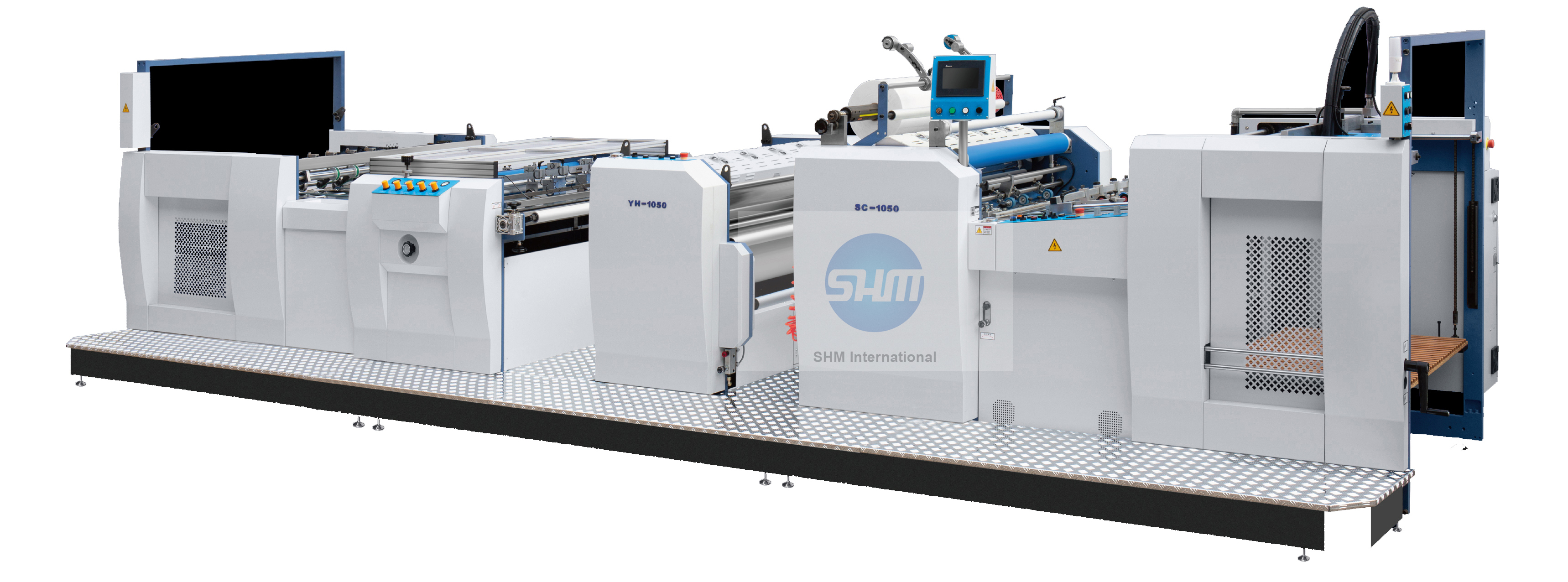

SC-1050+2 FULLY AUTOMATIC LAMINATOR







MAIN SPECIFICATIONS:

Model
SC-1050+2
Paper size
Max.820x1050mm
Min.300x300mm
Paper thickness
105-500g/m²
Laminating speed
0-100m/min
Pre-stacker
1850mm
Power
45/25kw
Weight
6000kg
Dimension
7600x2400x1900mm


MAIN FEATURES:

1.Auto Feeder
This machine is equipped with a paper pre-stacker,Servo controlled feeder and a photooelectric sensor to ensure that paper is continuously fed into the machine.




2.Servo Separation System
Servo seperation system to seperate paper stably and rapidly with limited film raw edge.




3.Electromagnetic Heater
Equipped with advanced electromagnetic heater.Fast pre-heating.Energy saving.Environmental protection.





4.High Speed Automatic Stacker
The pneumatic stacker receives the paper,keeping them in order,while rapidly counting every sheet.

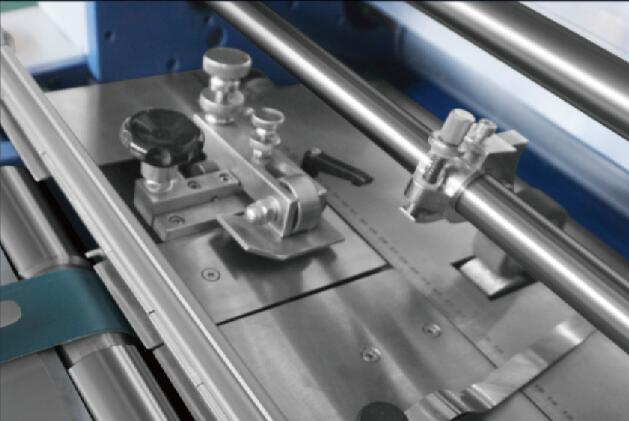

5.Side Lay Regulator
The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.




6.Double Lamination Unit(Optional)
Double Lamination Unit to reinforce film lamination.


二次压合 选配.jpg
