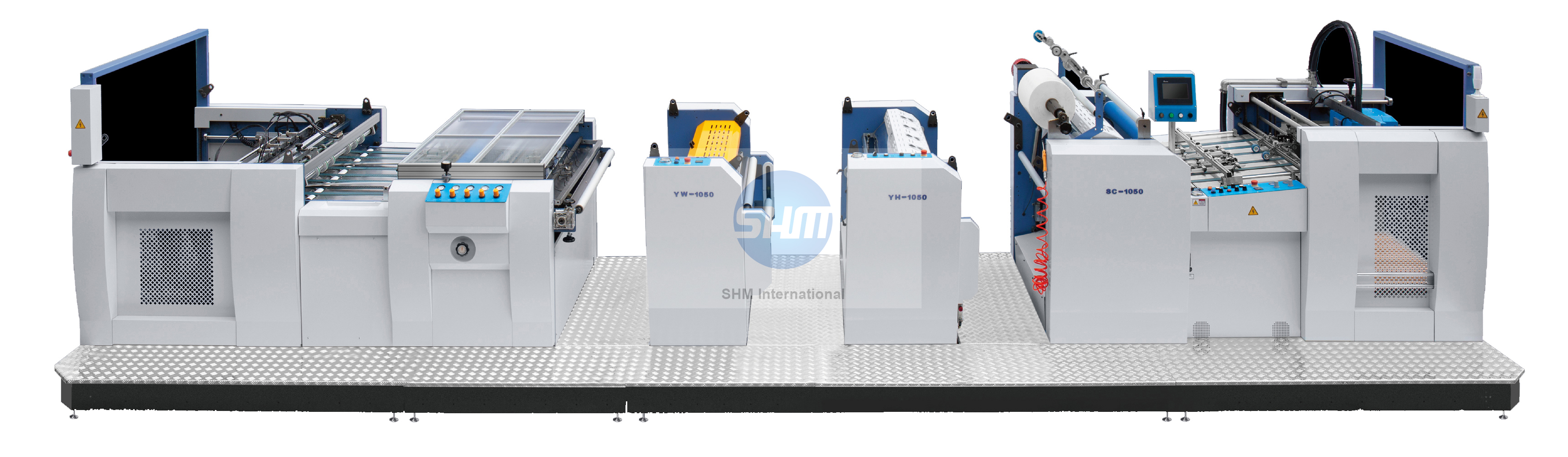

SC-1050+2+Y FULLY AUTOMATIC LAMINATOR







MAIN SPECIFICATIONS:

Model
SC-1050+2+Y
Paper size
Max.820x1050mm
Min.300x300mm
Paper thickness 105-500g/m²
Laminating speed 0-100m/min
Pre-stacker 1850mm
Power 45/25kw
Weight 7000kg
Dimension 8700x2400x1900mm


 MAIN FEATURES:

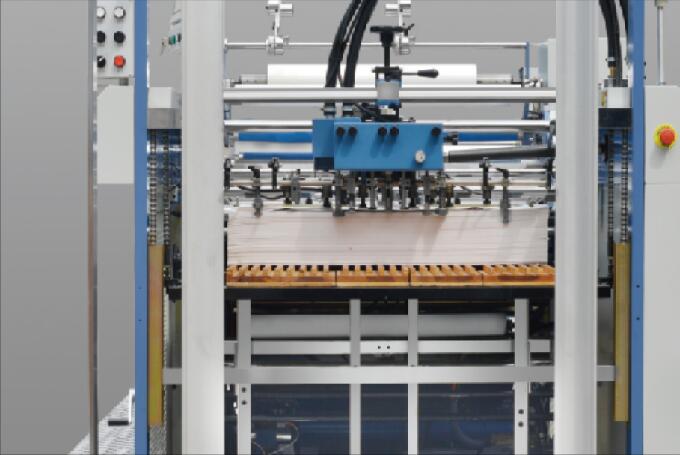

1.Auto Feeder:
This machine is equipped with a paper pre-stacker,Servo controlled feeder and a photooelectric sensor to ensure that paper is continuously fed into the machine.

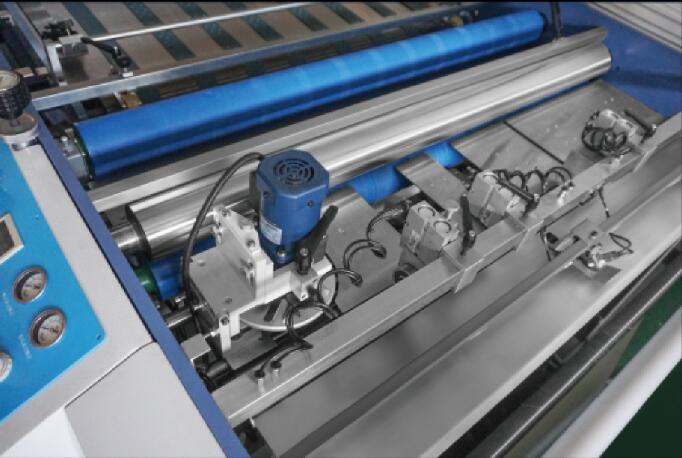

2.Servo Separation System
Servo seperation system to seperate paper stably and rapidly with limited film raw edge.

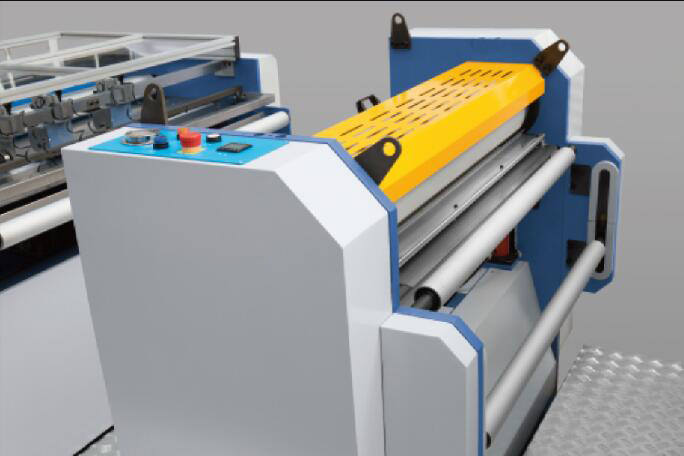

3.Electromagnetic Heater
Equipped with advanced electromagnetic heater.Fast pre-heating.Energy saving.Environmental protection.

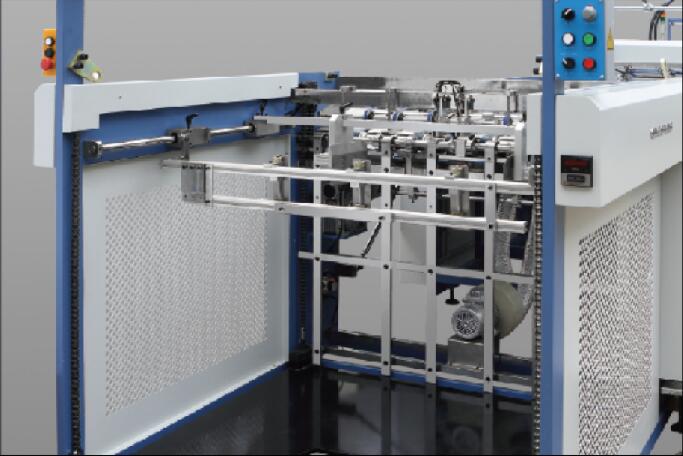

4.High Speed Automatic Stacker
The pneumatic stacker receives the paper,keeping them in order,while rapidly counting every sheet.





5.Double Lamination Unit(Optional)
Double Lamination Unit to reinforce film lamination.


二次压合 选配.jpg


6.Embossing Unit(Optional)
Embossing process makes paper good-looking and valuable.


压纹 选配.jpg
