Ê×Ò³ > PRODUCTS > POSTPRESS SYSTEM > LAMINATING MACHINESFML-720A/920A Semi Automatic Laminator

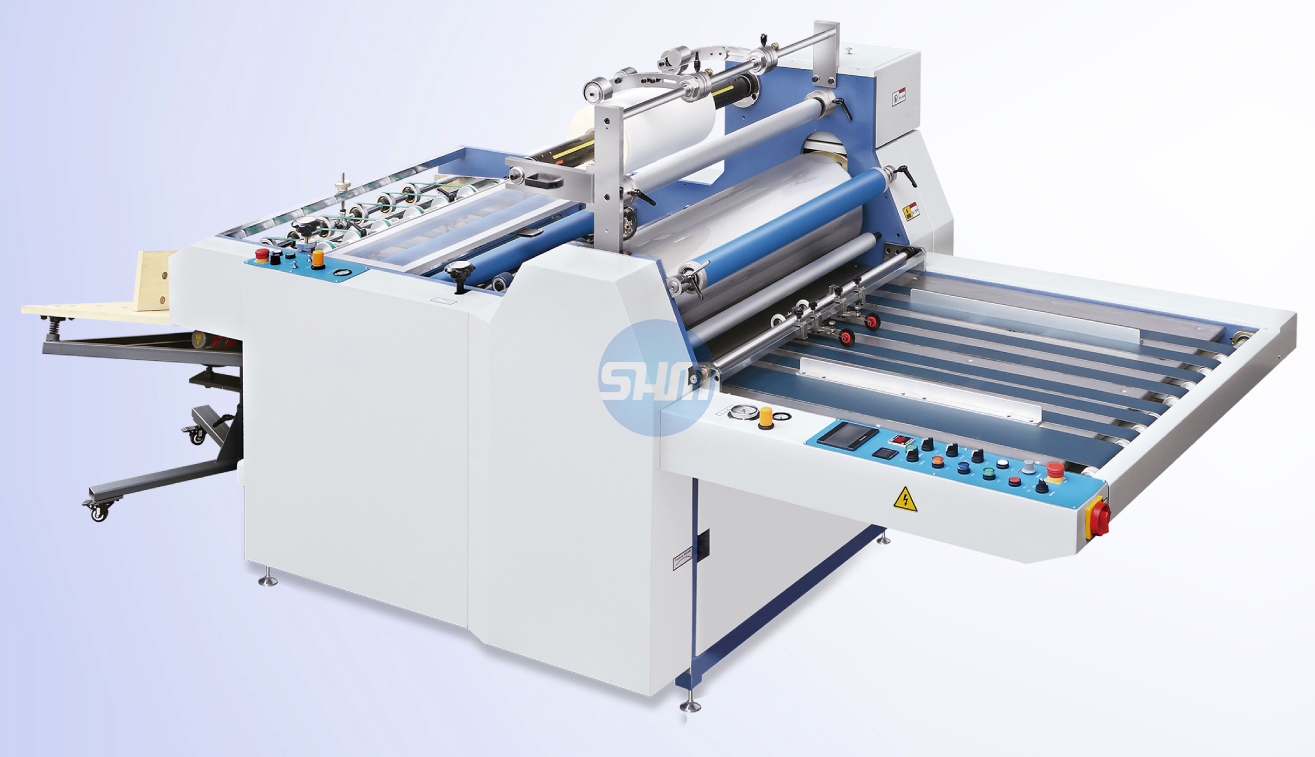

SFML-720A/920A SEMI AUTOMATIC LAMINATOR
MAIN FEATURES:
1. SCHNEIDER frequency converter equipped for infinite speed variation ensures speed adjustment much more convenient and efficient, and makes the machine run stably and quietly.
2. Enlarged size of chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.
3. SCHNEIDER PLC system realizes automatic paper seperation, breakdown alert for self-protection etc. functions.
4. Pneumatic film unwinding system position film roll more accruately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
5. Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
6. Perfected tration adjusting system makes traction adjustment more convenient and efficient.
7. Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.
MAIN SPECIFICATIONS:
|
Model |
SFML-720A |
SFML-920A |
|
Paper size |
Max.720mm |
Max.920mm |
|
Paper thickness |
100-500gsm |
100-500gsm |
|
Laminating speed |
0-30m/min |
0-30m/min |
|
Power |
17kw |
19kw |
|
Weight |
1600kg |
1800kg |
|
Dimension |
4000x1470x1650mm |
4000x1670x1650mm |
