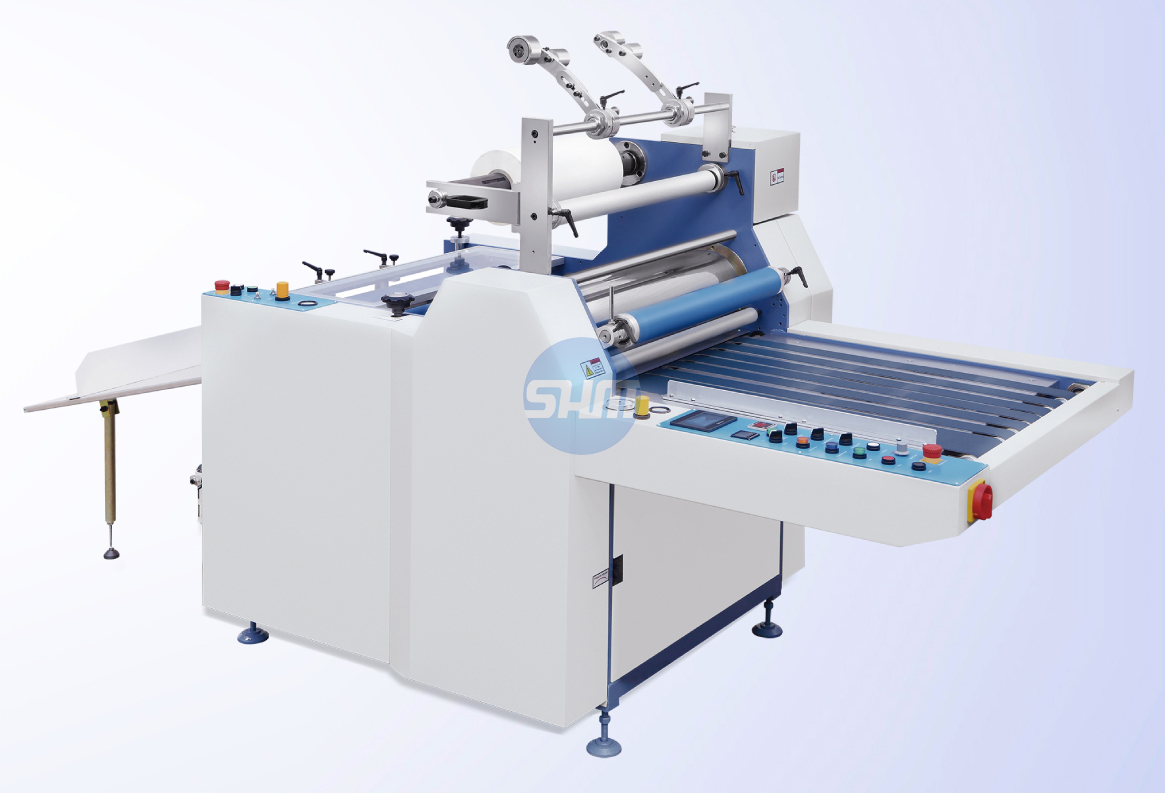

SFML-720/920 SEMI AUTOMATIC LAMINATOR







MAIN FEATURES:

1. Operate smoothly by using frequency conversion.
2. Adopt PLC to realize paper separating, breakdown alert functions etc.
3. Adopt high precision hard chrome plating mirror heating roller, in-dash oil heating system, and the feature of constant temperature is very great.
4. Adopting air expansion shaft to release the film, convenient to load and release and with accurate position.


MAIN SPECIFICATIONS:


Model

SFML-720

SFML-920

Paper size

Max.680mm

Max.880mm

Paper thickness

100-500gsm

100-500gsm

Laminating speed

0-25m/min

0-25m/min

Power

13kw

15kw

Weight

1000kg

1200kg

Dimension

 3100x1450x1600mm

3100x1650x1600mm
