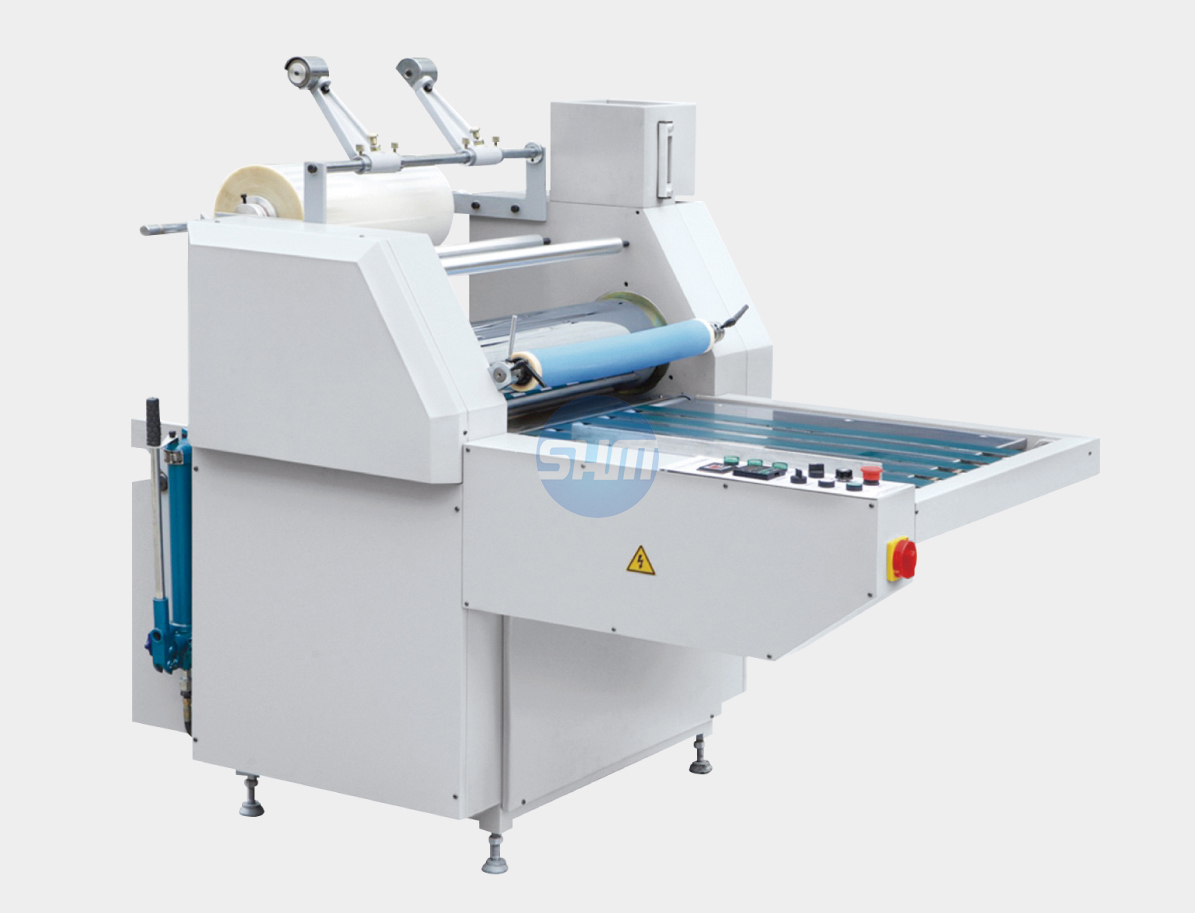

YDFM-720A/920A MANUAL LAMINATOR







INTRODUCTION:

The machine is equipped with frequency converter to adjust working speed. The heating roll adopts built in heating system. Hydraulic system provides big pressure for lamination. The whole machine has the features of high speed, low noise and stable running.


MAIN SPECIFICATIONS:


Model

YDFM-720A

YDFM-920A

Paper size

Max.680mm

Max.880mm

Paper thickness

105-500gsm

105-500gsm

Laminating speed

0-30m/min

0-30m/min

Power

13kw

15kw

Weight

600kg

700kg

Dimension

1870x1460x1600mm

1870x1660x1600mm
