HOME > PRODUCTS > POSTPRESS SYSTEM > LAMINATING MACHINEYDFM-720/920 Manual Laminator

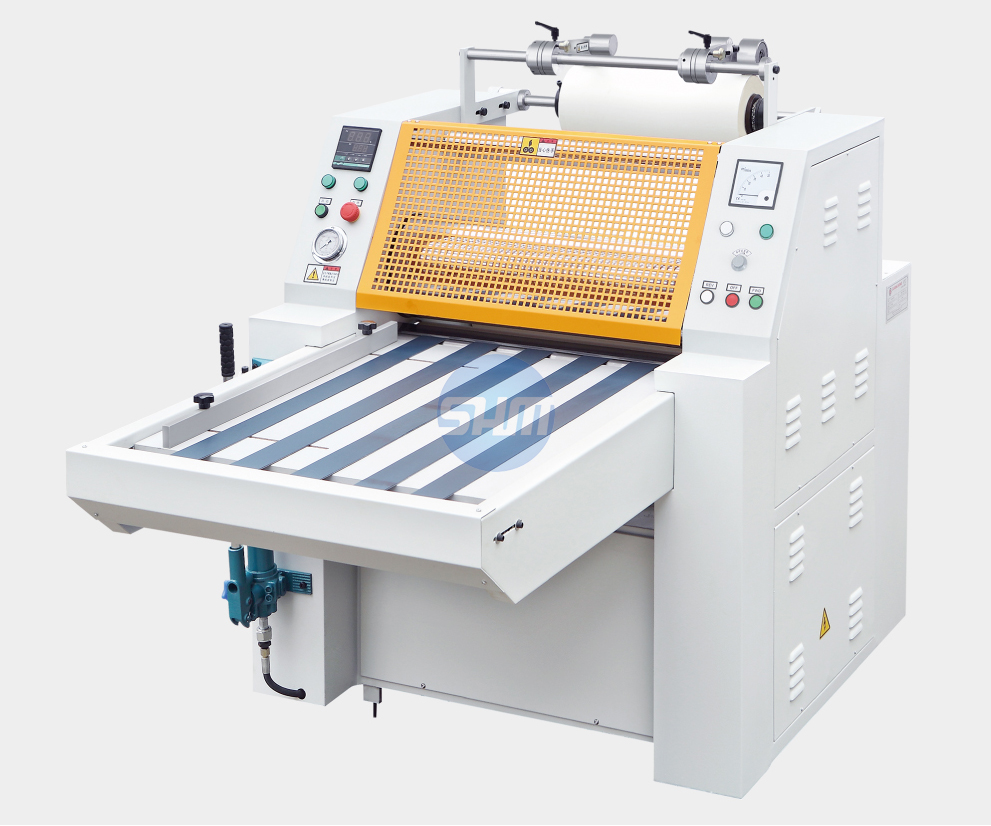

YDFM-720/920 MANUAL LAMINATOR







INTRODUCTION:

The machine is advanced in design, compact in structure and convenient for use. It adopts manual hydraulic pressuring system to provide big pressure, and has the features of quick temperature rise, quick working speed, low noise and stable running. It gets rid of defects of snowflake spots on deep printing in traditional lamination, reduces production loss, perfects product quality and improves so much working efficiency. And it is an indispensable post-press equipment for modern printing and packing industry.


MAIN SPECIFICATIONS:


Model

YDFM-720

YDFM-920

Paper size

Max.600mm

Max.800mm

Paper thickness

105-500gsm

105-500gsm

Laminating speed

0-30m/min

0-30m/min

Power

7kw

8kw

Weight

470kg

520kg

Dimension

1900x1300x1600mm

1900x1500x1600mm
