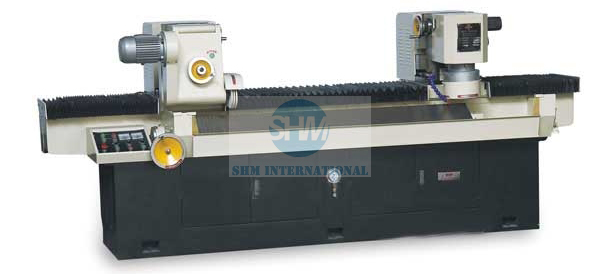

MSQ-1650E/2200E HIGH PRECISION EDGE FACE KNIFE SHARPNER
MAIN FEATURES:
1. Model MSQ-E High Precision End Face Grinder is a new-type patented to meet the requirement of high-tech development.
2. This is machine integrates both devices of knife sharpening and sharpening double grinding-head.
3. It adopts hydraulic automatic blade-feeding, traveling step-less speed regulation and rolling beeline guide track, which can change the angle of knife edge, thoroughly eliminate the waviness on paper-cutting cross section and prolong the using life of knife edge and blade.
MAIN SPECIFICATIONS:
|
Model |
MSQ-1650E |
MSQ-2200E |
|
Grinding length |
Max.1700mm |
Max.2200mm |
|
Grinding wheel size |
200x100x100mm |
|
|
Polishing disc size |
140x32x6mm |
|
|
Grinding blade width |
200mm |
|
|
Work table rotation angle |
±90° |
|
|
Grinding-head moving speed |
2000-15000mm/min |
|
|
Automatic knife feeding quantity |
0.0075-0.05mm |
|
|
Weight |
2500kg |
3000kg |
|
Dimension |
3400x1100x1550mm |
4100x1100x1550mm |
