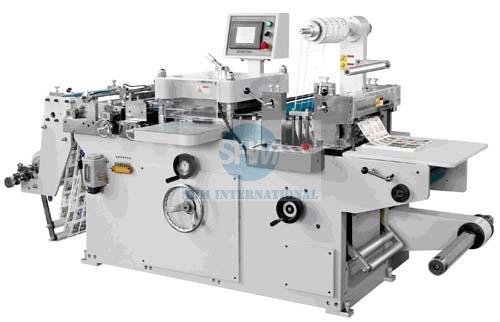

MQ-320 Fully Automatic Roll-roll Continuous Adhesive Label Die Cutter





MAIN FEATURES:



1. This is a high precision flat bed die cutter.

2. Material feeding & cutting are controlled by servo motor.

3. Lateral sides are controlled by 2pcs of sensor and lineal side is controlled by one of sensor.

4. Laminating, die cutting, waster removal, sheeting or rewinding can be completed in one pass.

5. It is suitable for cutting pressure sensitive label and holographic anti-counterfeiting label.

6. It is a best, efficient partner for adhesive label printing machine and hologram diec utter and is also applicable for label house, electronic parts die cutting and adhesive tape sectors.



MAIN SPECIFICATIONS:

Cutting speed

20-170 cycle/min

Max. unwind diameter

500mm

Max. web width

320mm

Max. die cutting width

300mm

Max. die cutting length

290mm

Positioning accuracy

±0.1mm

Total capacity

2.7kw

Overall dimensions(L× W × H)

2800 × 1100 × 1600mm

Machine weight

1500kg
