LY350 DIGITAL UV COATING & FOIL STAMPING MACHINE




MAIN FEATURES:

1. Single module processing unit, can make spot UV or 3D foil stamping in one paper feeding
2. Industrial structure, simple and flexible operation, no need stamping plate, all-digital operation
3. UV printing process replaces screen printing to improve environmental protection, and EIA gets extra points
4. Easy to work with other different printing such as offset printing, screen printing, rotogravure printing, digital printing and so on, to make post-press foil stamping or spot UV, which is achieving exquisite decorative effect and make enhancement on the printing sheets.


MAIN SPECIFICATIONS:


1. Digital printing system:

Control system

PC+PLC+Touch screen

Ink jet system

On-demand DOD inkjet

Resolution

720*1440dpi; 720*2160dpi

Picture format

PDF/RIP

Data transmission

USB/Hotfolder

Jet printing module

4+4 printing nozzles in double rows (standard version)
5+5 printing nozzles in double rows (standard version)

Printing speed

10m-50m/min

Roll feeding width

Max. 360mm

Jet printing width

70mm-350mm

Material thickness

20-400um

Jet printing length

30000mm (single image)

Overprint control

Printed color code sensor

Overprint accuracy

±0.15mm

Print medium

PET, PP, PVC, coated paper, synthetic paper and other non-high adsorption surface and adhesive materials

Ink type

Digital UV ink (with 5L ink tank)



2. Whole line:

Unwinding roll diameter

Max. 800mm

Rewinding/unwinding loading

Max. 100kg

Tension range

20-300N

Tension fluctuation

±1N

Air requirement

0.5-0.8Mpa

Working humidity

40-60%

Working temperature

20-26¡æ

Curing mode

LED-UV lamp or UV lamp

Power

13kw 380V 50Hz

Weight

2500KG

Dimension

3200x1400x2000mm

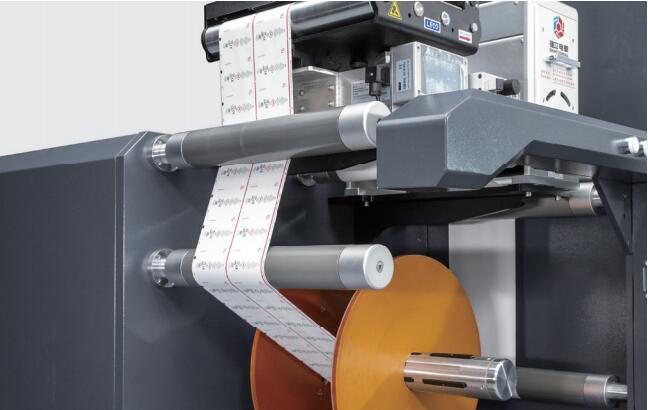

UNWINDING UNIT

With tension controller and corona treatment, the machine can run different materials such as PET, PP, PVC, coated paper, synthetic paper and other non-high adsorption Surface, adhesive label and so on.

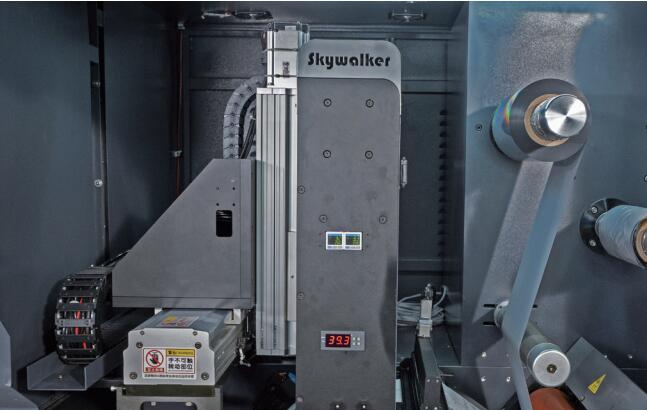

PRINTING UNIT

With color mark sensor, the machine can get high precision on UV spot coating & Foil stamping.







The core part of the whole machine, the perfect combination of unique digital printing head design and efficient control operation enables our equipment can do better in line stamping, 3D embossed stamping and spot UV coating thickness.

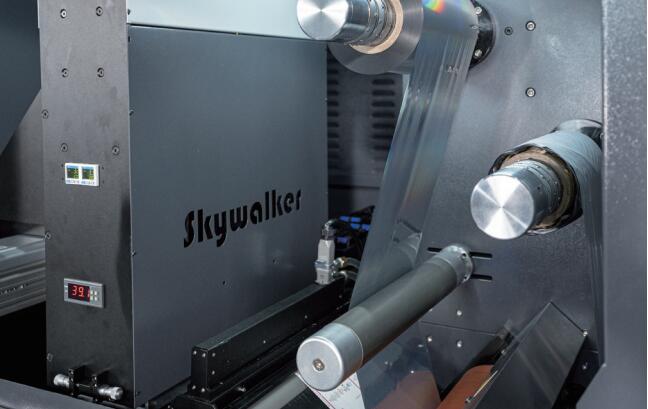

FOIL STAMPING UNIT

The unique hot stamping unit design enables the machine to process various stamping foils.







UV DRYER

UV dryer unit can choose LED-UV pre-curing or mercury lamp UV curing.

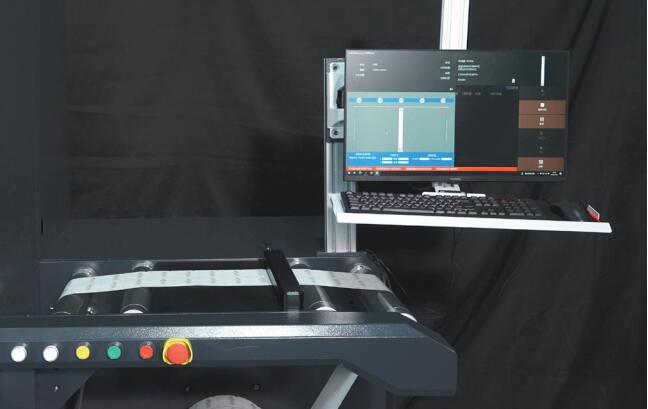

REWINDING UNIT

With CCD Camera, printing defects can be more easily detected.
