DX5080F FLEXO CTP







MAIN FEATURES:

1. Automatic Constant Pressure Adsorption System
For the plates of different sizes, ensure the absorbent pressure and adsorption effect are almost the same, thus the plate can be adsorbed perfectly.
2. Online Minification Adjustment
Reduce the workload of Designer, put all the minification for different printing machines into the Flexo CTP, and realize the function of minification on Flexo CTP.The minification can be adjustable for 97-100%.
3. Automatic Focusing Technology
For the plates of different thickness 0.15-4.7mm, after the plate is loaded onto the drum, the focus can be adjusted automatically by click“Automatic Focusing”whatever the plate thickness is, which can ensure the plate will be exposed at proper focus to gurantee the expose quality.
The temperature of the workshop for Flexo CTP is more flexible and the machine can work well when the temperature is 10℃-30℃.
4. Flatness Scanning
Plate stick to the drum, flatness laser scanning of the high-precision to verify the plate flatness, to ensure the center focus of the plate in the actual& clear imaging. If uneven adsorption, the error will be immediately reported. lt reminds the user to reload the plate and reduce the unnecessary loss.
5. Automatic Dedusting
Activated carbon
Filter
Pressure real-time monitoring
6. Linear Motor Scanning System
High precision, high speed, and maintenance free, to ensure the stable working of the laser system.
7. Marble Plartform
High precision,low temprature factor, extremely precision at long term lifecycle.
8. 7 Inch Touch-screen Monitor
More simple and practical for operation.
9. Bidirectional Pedals
Free operator's hands to make the loading and unloading process easier.
10. Gigabit Ethernet Interface
More stable and reliable of data transmission, and further of the transmission distance.The distance of the equipment and the edition computer can be more than 100 meters away.


MAIN SPECIFICATIONS:


Model

DX5080F-I

DX5080F-II

DX5080F-III

Productivity

1.3/2.5㎡/h

2.6/5.0㎡/h

4.0/8.0㎡/h

Max plate size

2032x1270mm(80x50inches)

Plate thickness

0.95-4.7mm

Output media

Digital flexographic water-washable letterpress plates;

Digital flexographic water-washable plates;

Digital flexographic solvent-washable plates

Application

Label printing, Trade mark, Packaging

Resolution

4800DPI/2400DPI(Switch)、4000DPI

Loading method

Manual loading

Interface

Gigabit Ethernet

Environment

Best environment temperature 18-30℃, Humidity 40-70% non condensing

Power supply

7kw AC220V 50/60HZ Peak(Single phase)

Weight

2700kg

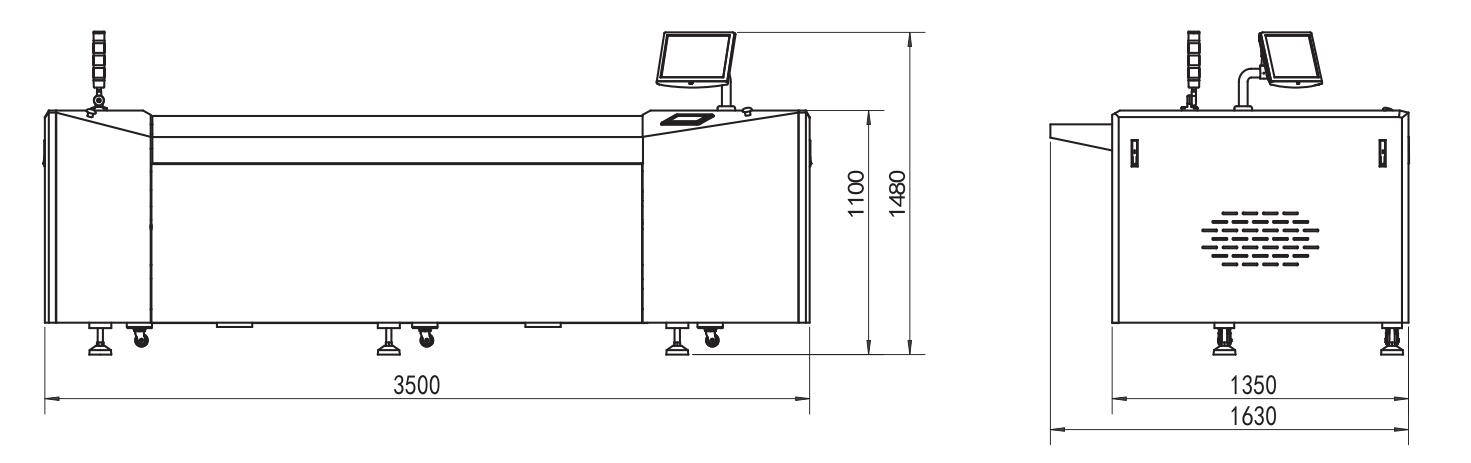

Dimension

3500x1630x1100mm
