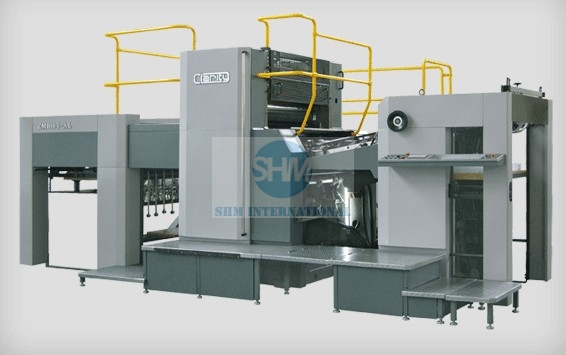

ZMB104-AL SHEET-FED OFFSET PERFECTOR







MAIN FEATURES:

1. Double-row TRB (Tapered Roller Bearing) Equipped for All Cylinders
2. Underside Feeding Swing Arm with Conjugate Cam; Underside Front Lay
3. Separate Adjustable Plate Clamp for Quick Register Correction
4. Accurate Electric Plate Locating Device
5. 5-roller Alcohol Dampening System; Patented Intermediate Roller of Stable Performance
6. Straight-line Rail Guided Feeder Head With 4 Pick up and 4 Forwarding Suckers
7. Centralized Control through Touch Screen
8. Air Clutch for Cylinders and Rollers; Both Automatic and Manual Clutch Control Possible For Flexible Operation
9. Gripping Force Adjustable For All Transfer Grippers
10. Stainless Steel Sprayed Plate Cylinder
11. Centralized Automatic Lubricating System


MAIN SPECIFICATIONS:


Max sheet size

720 × 1040mm

Min sheet size

360 × 520mm

Max printing area

710 × 1030mm

Plate size

800 × 1040 × 0.3mm

Max printing speed

10000sph

Sheet thickness

0.04-0.20mm

Feeder stacking capacity

1200mm

Delivery stacking capacity

900mm

Machine power

25kw

Weight

16000kg

Dimension

5720 × 3380 × 2750mm
