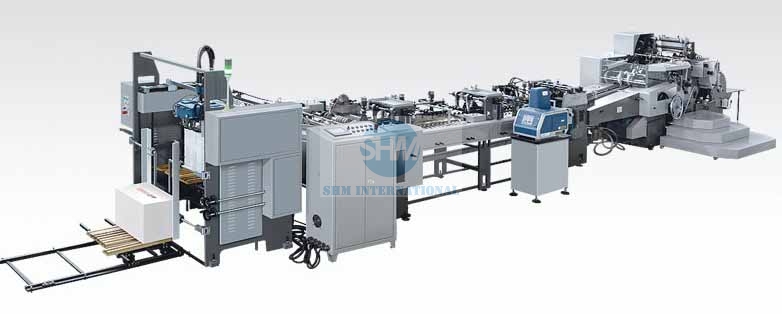

ZB700C-240 SHEET FEEDING PAPER BAG MAKING MACHINE







MAIN FEATURES:

1. The machine is suitable for the mass bag, which is the first choice of medium and top grade handbag device.
2. The machine adopts engine, electricity, light, gas integration technology, setting a number of its proprietary technology, can one time leaflet after the paper printing, automatic paper feeding, positioning, die cutting, tube folding, bottom folding and gluing to compaction output.
3. The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process.
4. The machine adopts PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system.


MAIN SPECFICATIONS:


Sheet size

Max.720x410mm

Min.325x210mm

Sheet weight

80g-190g/m²

Bottom width

50-110mm

Bag width

100-240mm

Bag length

120-320mm

Power

9kw

Speed

70-100bags/min

Weight

9000kg

Dimension

13000x1850x1850mm
