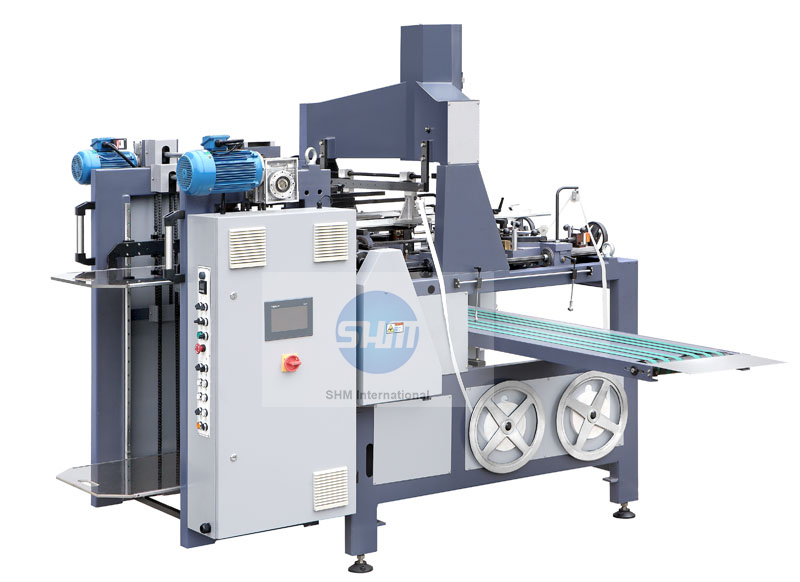

ATJ600 AUTOMATIC BOX FORMER













MAIN FEATURES:

1.  It adopts PLC control and friendly HMI.
2.  Automatic feeding cardboard, Max. stacking height 1000mm.
3.  In order to improve working speed, cardboard table adopt on-line feeding.
4.  Easy to change mold, suitable for different sizes of products.
5.  The hot-melting glue tape auto conveying, cutting and four-angle sticking, forming the box in one process.
6.  Auto alarm when the tape run out.


MAIN SPECIFICATIONS:

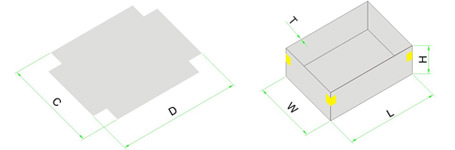

Cardboard size
Max.600x800mm
Cardboard thickness
0.8-3mm
Box size
Max.600x400x150mm
Min.100x50x15mm
Max speed
35sheets/min
Heater power
1.8kw
Motor power
2.4kw
Weight
1550kg
Dimension
2350x2500x2300mm
